中文繪圖型模組目錄 Chinese Graphic LCM Catalogs
產品介紹:
Display Format
Char. x Line
Picture Model No.

Outline
Dimension
(WxH)mm

Effective
Viewing Area
(WxH)mm

Dot Size
(WxH)mm
Dot Pitch
(WxH)mm
Specification File

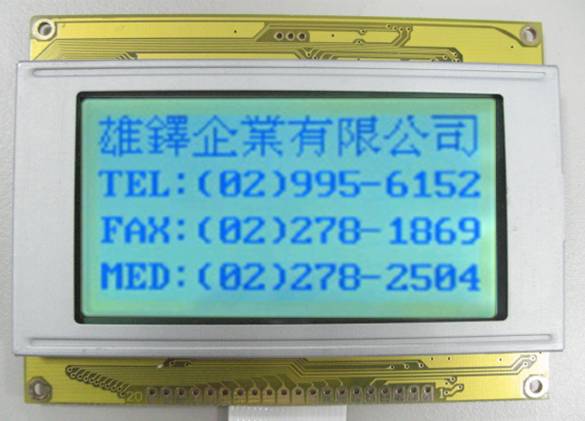

128x64 SGS12864J0 93.4 x 70.0 72.0 x 39.0 0.48 x 0.48 0.52 x 0.52

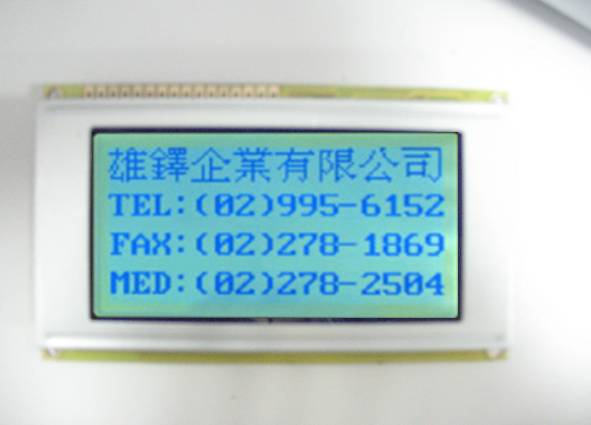

SGS12864K0 98.0 x 60.0 72.0 x 39.0 0.48 x 0.48 0.52 x 0.52

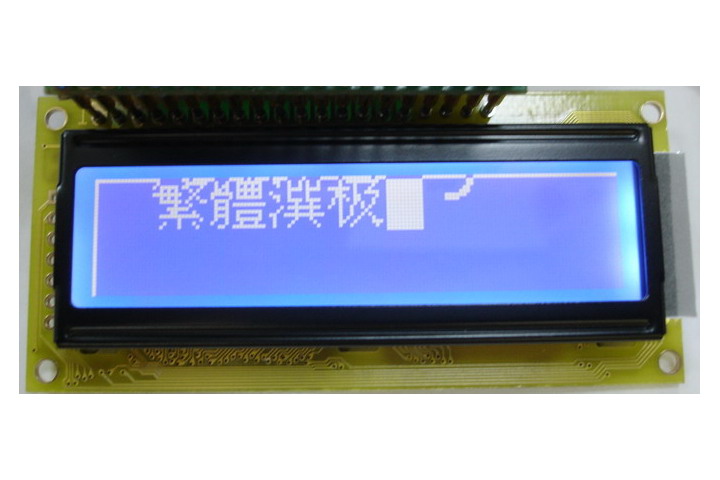

144x32 SGS14432A0 80.0 x 36.0 65.0 x 16.0 0.39 x 0.39 0.42 x 0.42

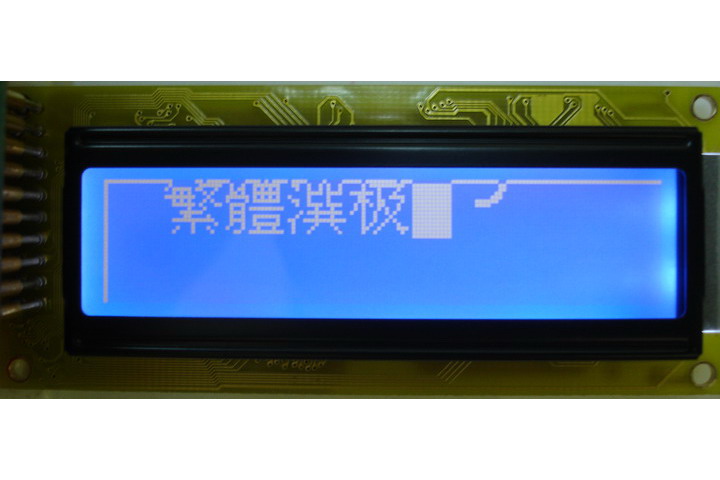

SGS14432B0 85.0 x 36.0 65.0 x 16.0 0.39 x 0.39 0.42 x 0.42

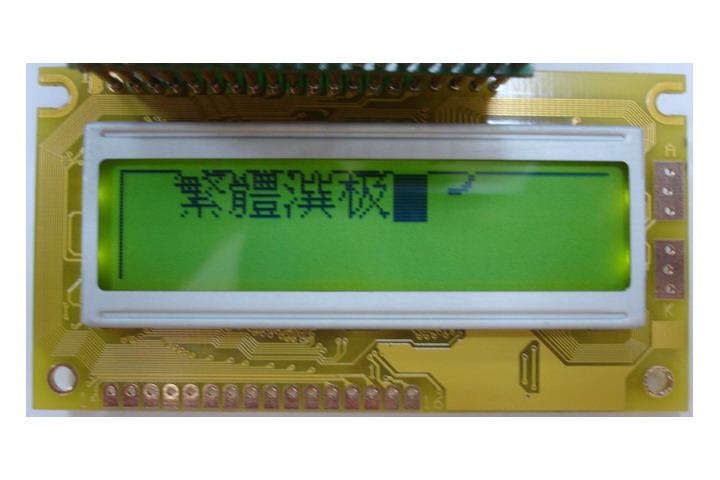

SGS14432C0 84.0 x 44.0 65.0 x 16.0 0.39 x 0.39 0.42 x 0.42

160x80 SGS16080G1 93.0 x 70.0 72.0 x 39.0 0.39 x 0.39 0.42 x 0.42

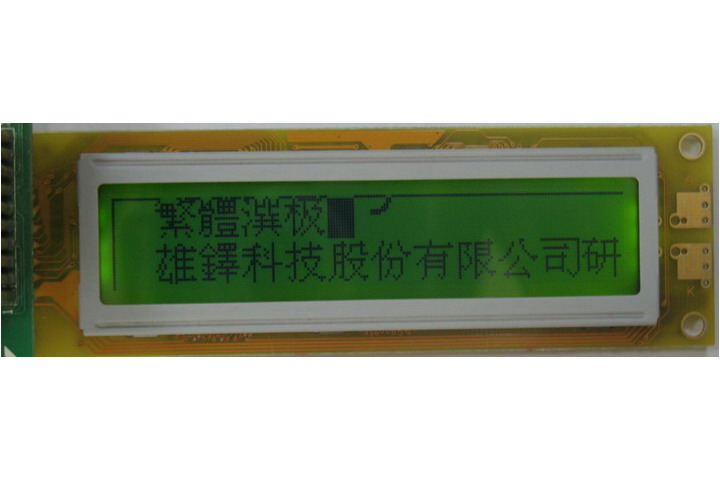

192x32 SGS19232A0 115.0 x 36.0 85.0 x 16.6 0.39 x 0.42 0.42 x 0.45

SGS19232A4 115.0 x 36.0 85.0 x 16.6 0.39 x 0.42 0.42 x 0.45

N/A

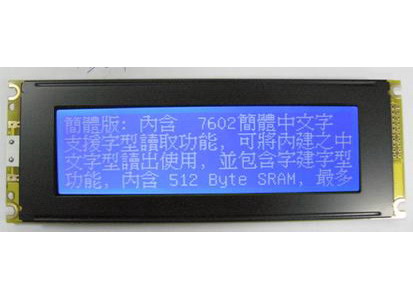

240x64 SGS24064D0 180.0 x 65.0 132.0 x 39.0 0.47 x 0.47 0.51 x 0.51
