文字型模組目錄 Character LCM Catalogs
產品介紹:
Display Format
Char. x Line  		 Picture Model No.

Outline
Dimension
(WxH)mm

Effective
Viewing Area
(WxH)mm

 Dot Size
(WxH)mm		 Dot Pitch
(WxH)mm		 Specification File

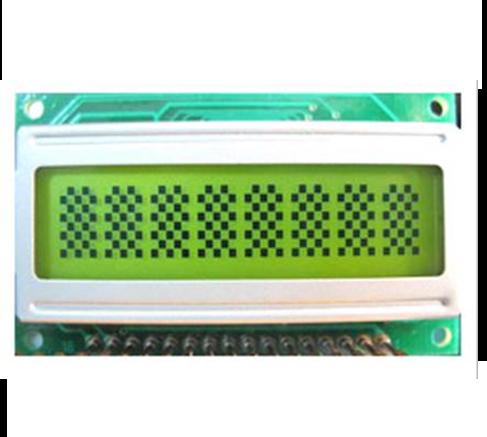

08x1 SCS08001A0 60.0 x 36.0 48.0 x 13.0 0.85 x 1.00 0.90 x 1.05

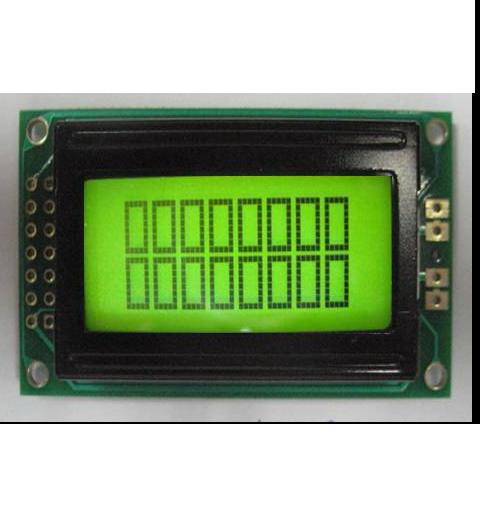

08x2 SCS08002A0 58.0 x 32.0 38.0 x 16.0 0.56 x 0.66 0.60 x 0.70

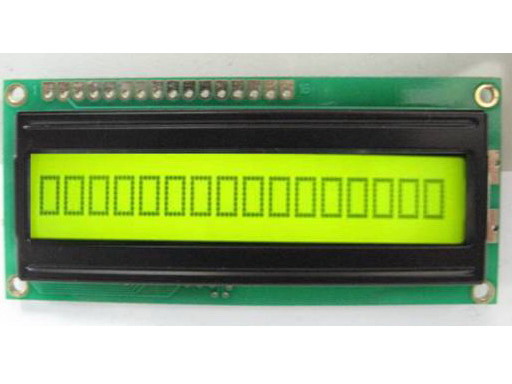

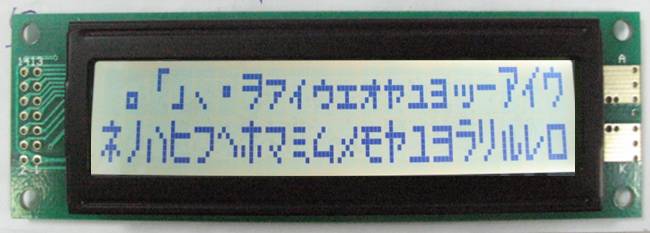

16x1 SCS01601C0 80.0 x 36.0 65.0 x 13.8 0.55 x 0.75 0.63 x 0.83

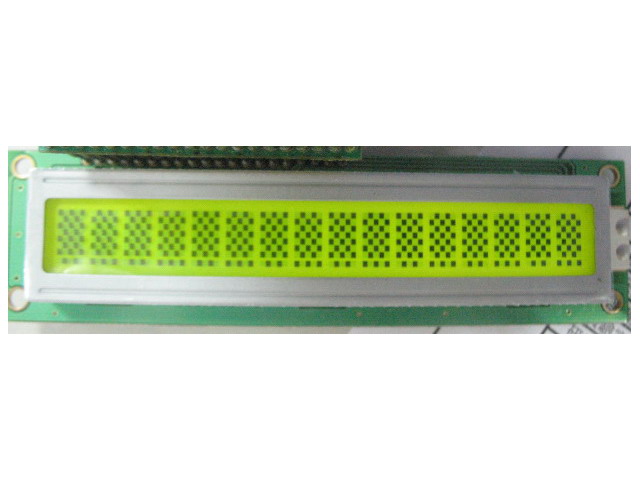

16x1 SBS01601A0 122.0 x 33.0 99.0 x 13.0 0.93 x 1.11 0.98 x 1.16

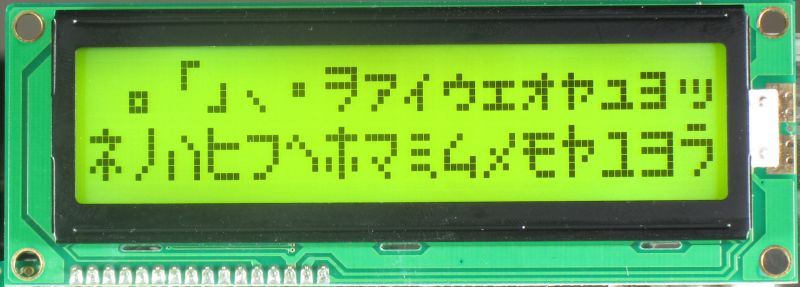

16x2 SBS01602A0 122.0 x 44.0 99.0 x 24.0 0.92 x 1.10 0.98 x 1.16

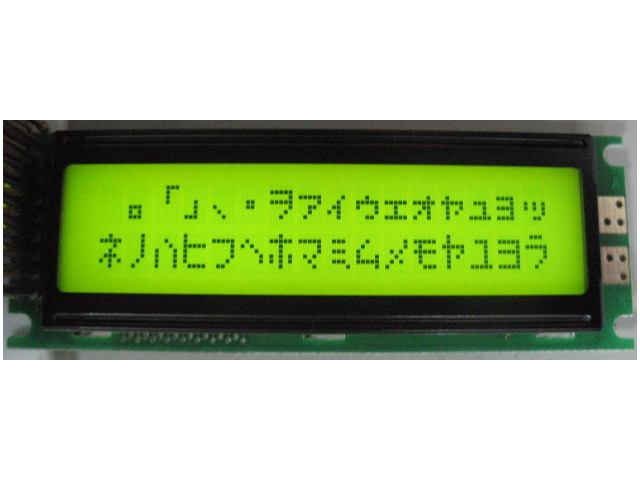

16x2 SCS01602A0 85.0 x 30.0 65.0 x 16.0 0.50 x 0.55 0.57 x 0.62

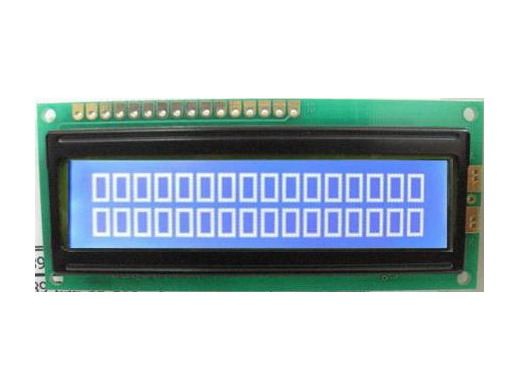

16x2 SCS01602B0 80.0 x 36.0 65.0 x 16.0 0.50 x 0.55 0.57 x 0.62

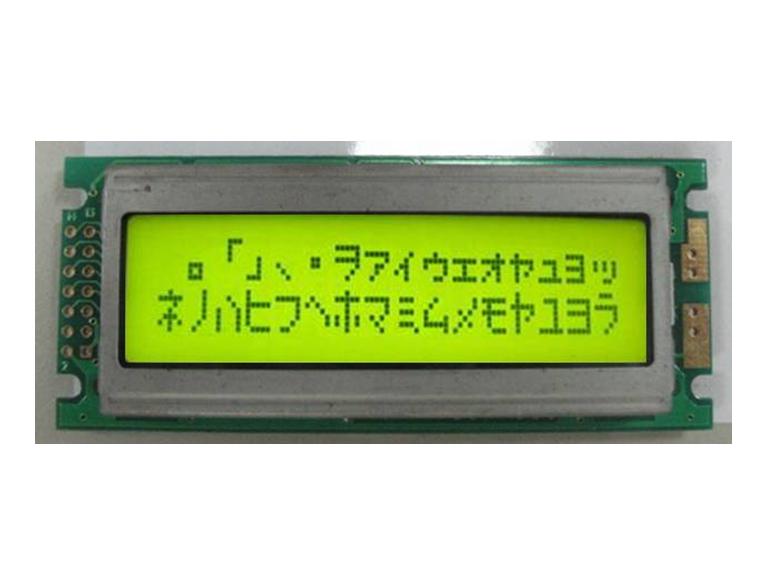

16x2 SCS01602C0 85.0 x 35.0 65.0 x 18.0 0.56 x 0.66 0.60 x 0.70

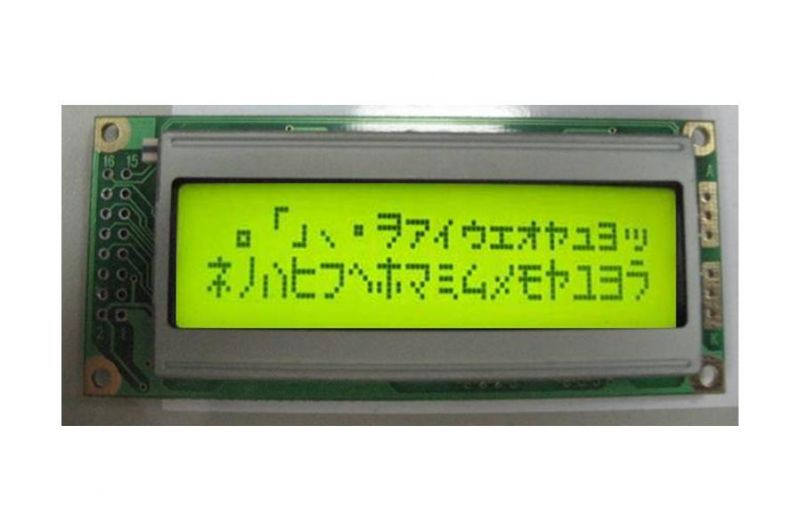

16x2 SCS01602D0 85.0 x 36.0 65.0 x 18.0 0.56 x 0.66 0.60 x 0.70

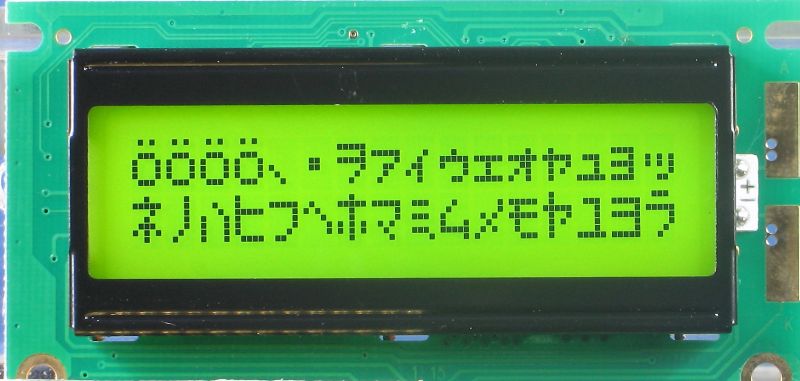

16x2 SCS01602E0 84.0 x 44.0 65.0 x 18.0 0.56 x 0.66 0.60 x 0.70

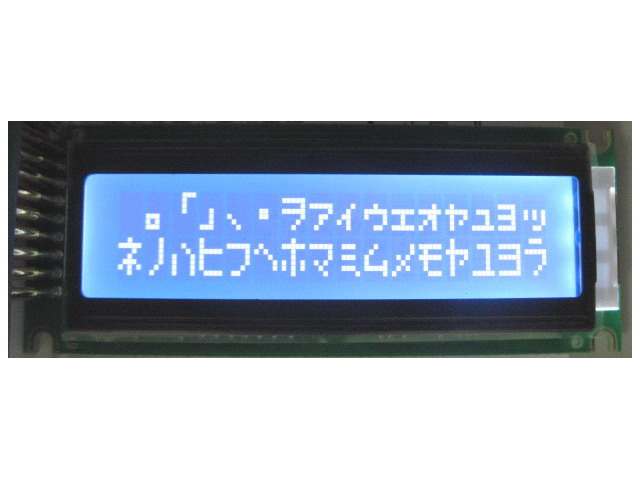

16x2 SCS01602F0 85.0 x 32.6 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70
16x2 SCS01602H0 85.0 x 36.0 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70

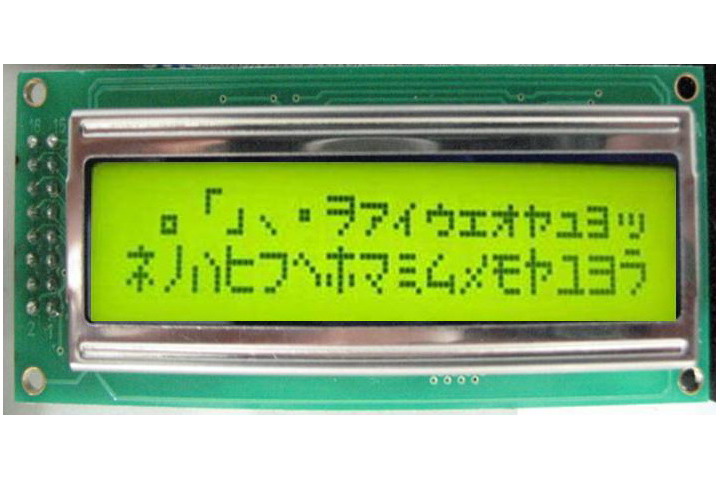

16x2 SCS01602J0 84.0 x 44.0 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70
16x2 SCS01602K0 85.0 x 36.0 65.0 x 16.0 0.55 x 0.50 0.60 x 0.55

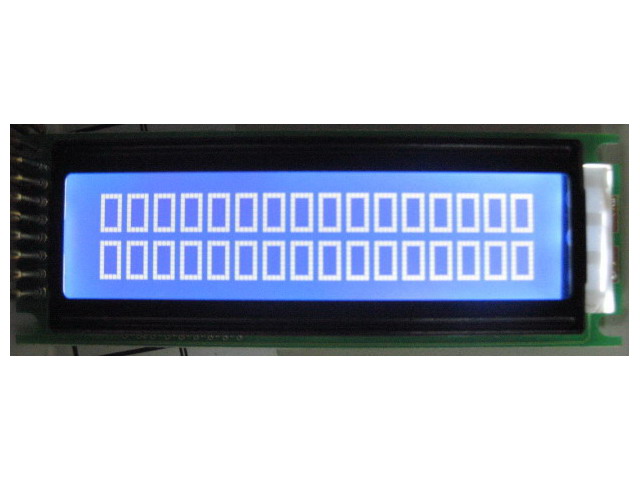

16x2 SCS01602M0 85.0 x 30.0 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70

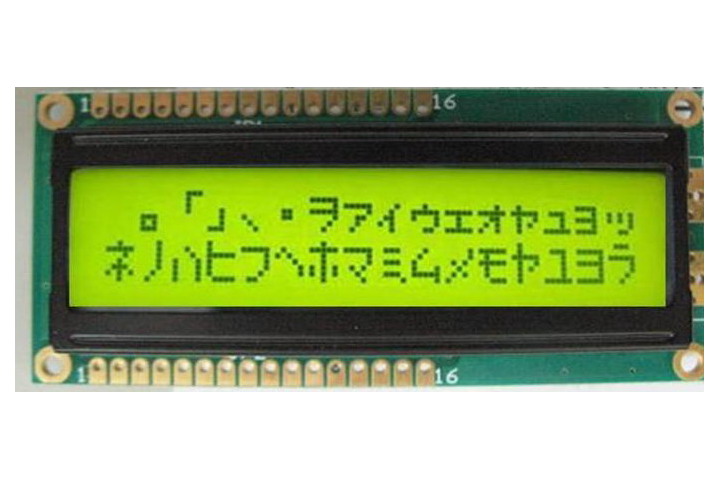

16x2 SCS01602P0 80.0 x 36.0 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70

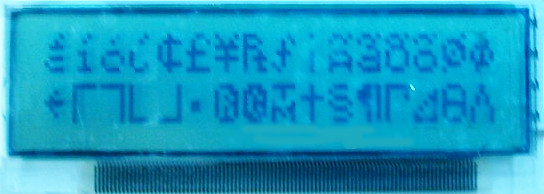

16x2 SCS01602Q0 66.7 x 23.3 61.0 x 15.9 0.55 x 0.65 0.60 x 0.70

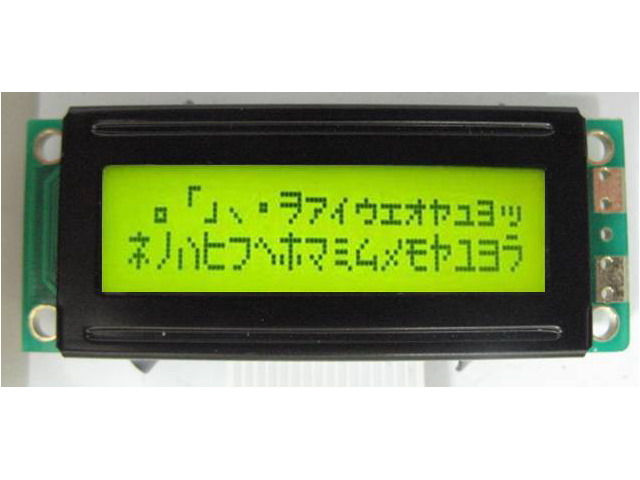

16x2 SCS01602A9 53.0 x 20.0 36.0 x 10.0 0.33 x 0.35 0.38 x 0.40

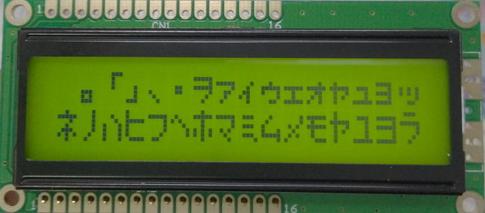

16x2 SCS01602BA 80.0 x 36.0 65.0 x 16.0 0.56 x 0.66 0.60 x 0.70

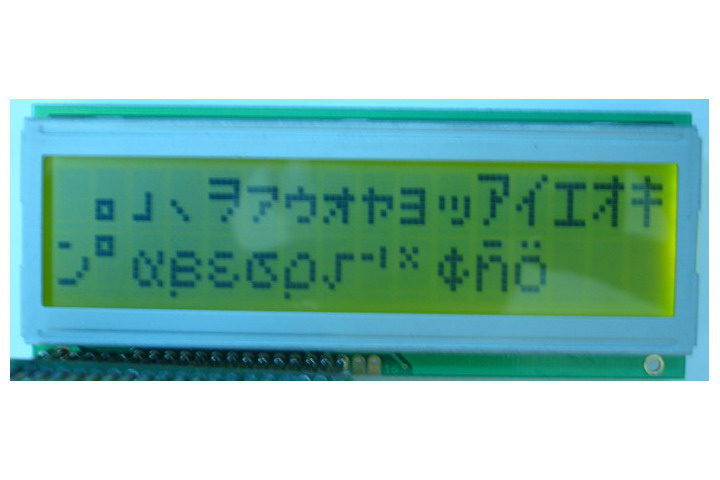

16x2 SBS01602B0 106.5 x 43.5 99.0 x 24.0 0.95 x 1.10 0.98 x 1.16

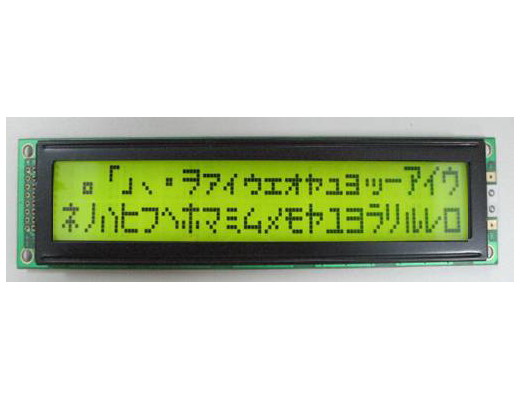

20x2 SBS02002A0 180.0 x 40.0 149.0 x 23.0 1.12 x 1.12 1.12 x 1.12

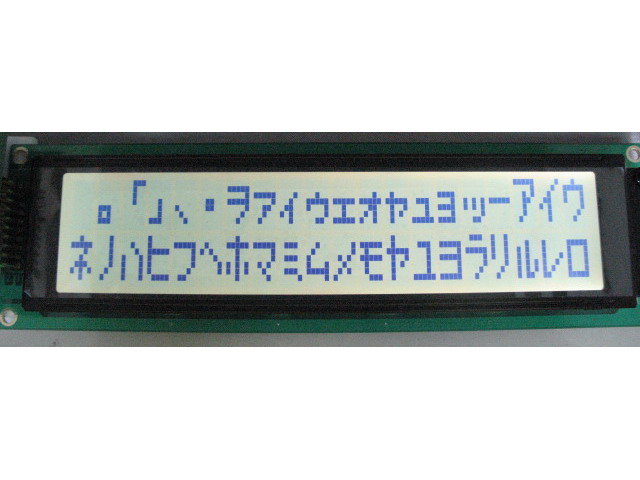

20x2 SBS02002B0 190.0 x 54.0 149.0 x 33.0 1.15 x 1.70 1.21 x 1.75

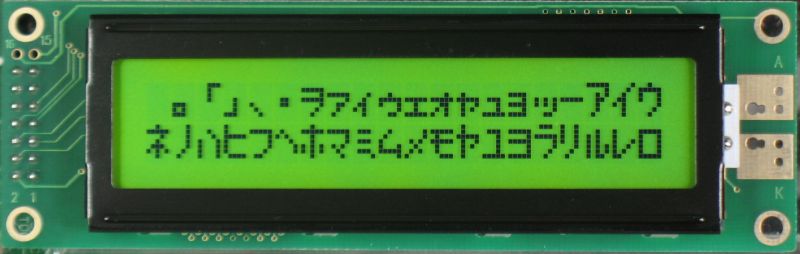

20x2 SCS02002A0 115.0 x 36.0 83.0 x 18.6 0.60 x 0.65 0.65 x 0.70

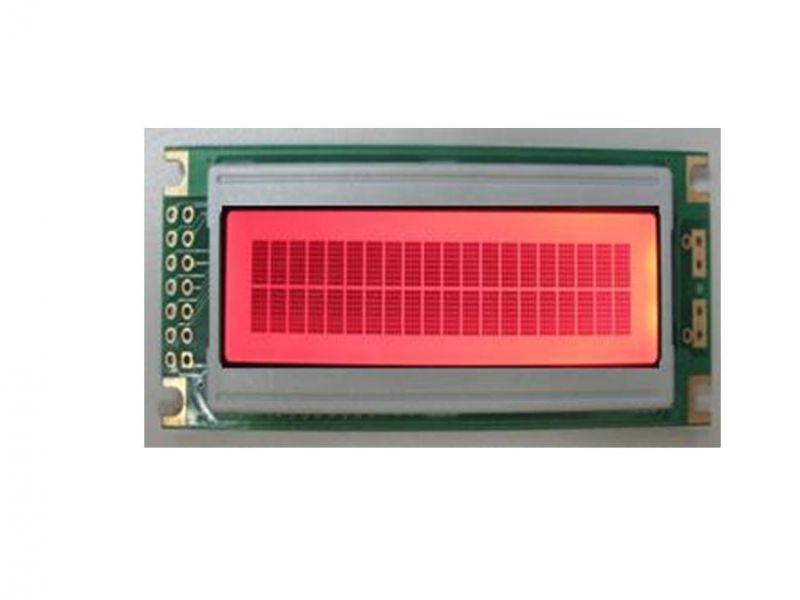

20x2 SCS02002A1 85.0  x  30.0 65.0 x 16.0 0.43 x 0.48 0.47 x 0.52
20x2 SCS02002D0 115.0 x 36.0 83.0 x 18.6 0.60 x 0.65 0.65 x 0.70

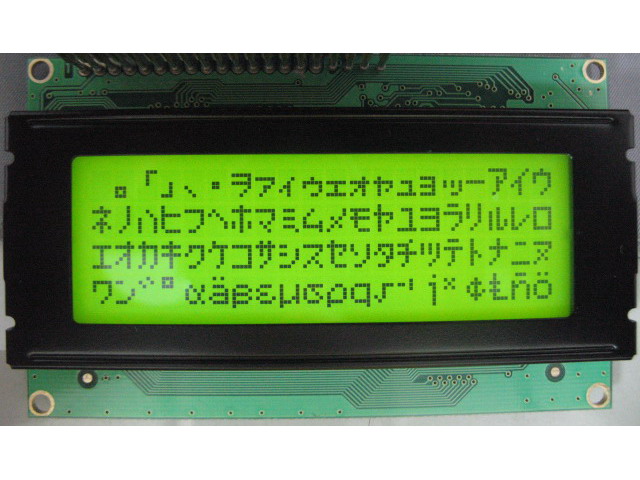

20x4 SCS02004A0 98.0 x 60.0 76.0 x 25.0 0.55 x 0.55 0.60 x 0.60

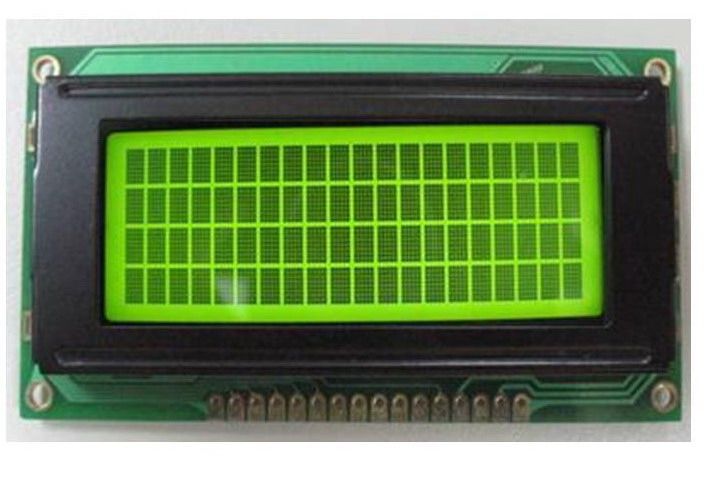

20x4 SCS02004A1 85.0 x 44.0 60.0 x 22.0 0.42 x 0.46 0.47 x 0.51

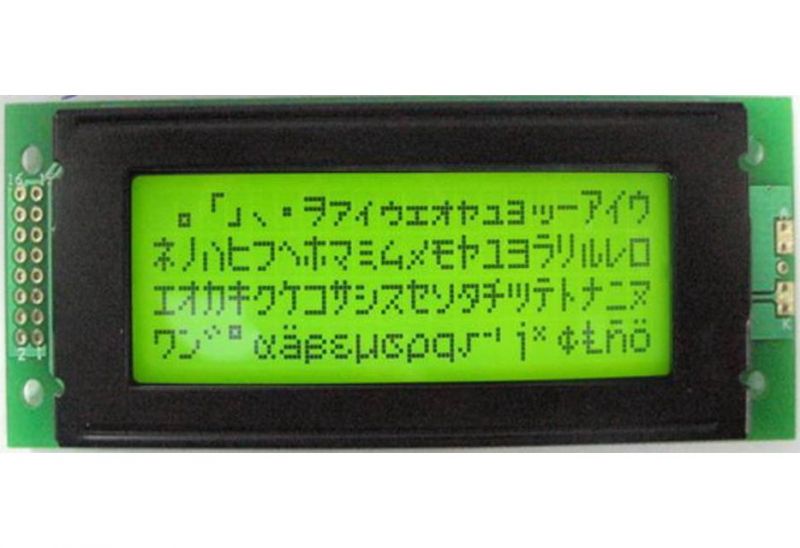

20x4 SCS02004A2 118.0 x 43.0 76.0 x 25.0 0.55 x 0.55 0.60 x 0.60

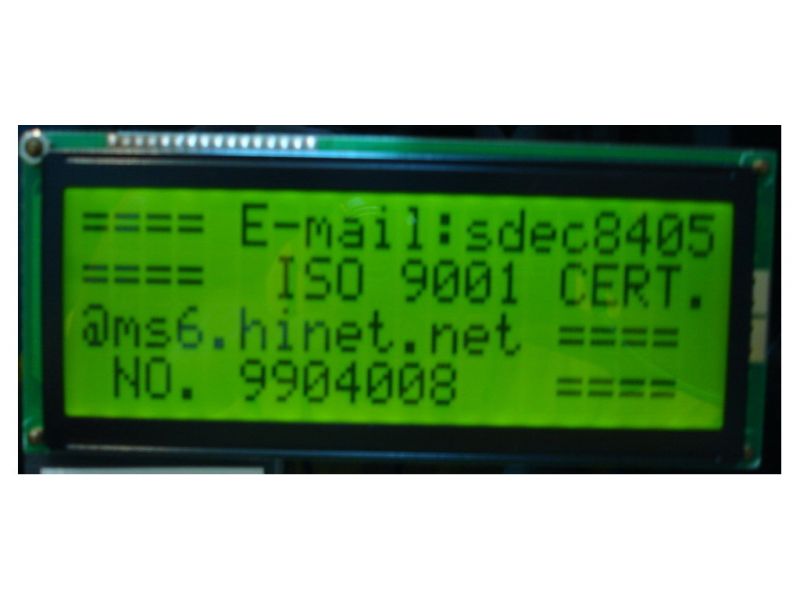

20x4 SBS02004A0 146.0 x 62.5 125.0 x 42.5 0.92 x 1.10 0.98 x 1.16
24x2 SCS02402D0 118.0 x 36.0 94.0 x 17.8 0.60 x 0.65 0.65 x 0.70
40x2 SCS04002A0 182.0 x 33.5 153.6 x 16.2 0.60 x 0.65 0.65 x 0.70
40x4 SCS04004A0 190.0 x 54.0 147.0 x 29.5 0.52 x 0.57 0.57 x 0.62
